SSO and User Provisioning

Version 25.3.9469

SSO and User Provisioning

CData Arc supports single sign-on (SSO) via either the SAML 2.0 or OpenID authentication protocols. This feature enables identity providers such as Microsoft Entra ID (formerly Azure Active Directory) or Okta, which support these protocols, to serve as SSO platforms for Arc.

Overview

Enabling SSO requires that you configure a group of settings on the Security tab of the Settings page. When you configure the SSO settings, users that are created within Arc should be given a federation Identifier (Id). This federation Id associates a Arc username with an identity provider entity. When the Arc user attempts to log in to the application, it is redirected to the SSO platform where the credentials for the appropriate identity must be entered.

If Just-in-Time (JIT) user provisioning is enabled (also from the Security tab), a new user account is automatically created in Arc at the time of login, based on attributes that are received from the identity provider (for example, the user’s name and email address). This identity and access management (IAM) process streamlines onboarding by eliminating the need for manual account creation. For more details, see Just-in-Time (JIT) User Provisioning.

After SSO is configured and Arc users have a federation Id value to associate them with an identity provider, any additional advanced configuration for SSO user management should be performed directly in the SSO platform, as explained in the following sections.

Note: Currently, Arc supports only individual users, not groups of users. If an SSO platform provides access for a group of users, each individual user within that group must be added as a user on the Arc Settings page in order to log in. Each user should reference the federation Id from the identity provider (as described below).

The following sections explain how to set up SSO configuration through two identity providers, Microsoft Entra ID and Okta, with the OpenID Connect and SAML 2.0 authentication protocols.

SSO Settings

This section describes each of the SSO settings and what they represent in Arc. The details of these settings might differ based on your IdP.

OpenID Connect Settings

  • Callback URL The callback URL is configured in the IdP (not Arc) to indicate where users should be returned once they perform the authentication against the IdP.
  • OAuth Client Id The client Id associated with the OAuth application created in the IdP.
  • OAuth Client Secret The client secret associated with the OAuth application created in the IdP.
  • Audience URIs The intended recipient of SSO login tokens. This ensures that tokens generated by the SSO platform are intended for use by Arc. Set this value to the URI that identifies Arc as a trusted application in your SSO platform (for example, the Application Id that the SSO platform generated for Arc). To accommodate multiple URIs, supply a comma-separated list.
  • Discovery URL Required to import settings from your SSO provider.
  • Issuer Certificate The public portion of the certificate that the IdP uses to sign JWT tokens. This helps ensure that only tokens generated by the expected IdP are accepted.
  • Token Issuer Identifier The identifier used by the IdP when generating JWT tokens. Arc validates tokens to ensure that they include this identifier. This helps ensure that only tokens generated by the expected IdP are accepted.
  • Authorization URL The URL where the user should perform authorization via the IdP. When an SSO user attempts to login in to Arc, the application redirects the user to this URL where they enter their SSO platform credentials.
  • Token URL The URL where a secure authentication token can be obtained from the IdP.
  • Logoff URL Specifies where the Arc user is redirected after logging out of the application.
  • Default Scopes A space-separated list of scopes (sets of permissions) to request from the IdP. Typically the scope(s) should at least include profile openid to request identity verification.
  • Key Claim The value from the IdP to treat as the federation Id. In other words, this specifies the claim to use as the federation Id when mapping users from the IdP to Arc usernames.
  • Token Signature Algorithm Which signature algorithms are accepted from signed JWT tokens. Unsigned tokens are never accepted.
  • Just-in-Time (JIT) Provisioning Whether a new user account is created automatically in Arc when a user first logs in. User details are based on the attributes provided in the claim.
  • Default Role The Role (Support, Standard, or Admin) assigned to accounts created during JIT provisioning. If you select No Default Role, the role specified in the claim is used.

SAML 2.0 Settings

  • Assertion Consumer Services (ACS) URL The endpoint on the Arc application where the IdP sends the SAML authentication response after a user successfully logs in. This is similar to the Callback URL setting in OpenID.
  • Audience URI A unique identifier (typically the application’s Entity ID) that the SAML assertion is intended for. Used to validate that the response is meant for your application.
  • SAML Discovery URL The endpoint used to determine which IdP should be used for authentication. Required to import settings from your SSO provider.
  • Issuer Certificate The public portion of the certificate that the IdP uses to sign JWT tokens. Helps ensure that only tokens generated by the expected IdP are accepted.
  • Entity ID A globally unique identifier used to identify an IdP or service provider in a SAML authentication process (often formatted as a URI).
  • SSO URL The IdP endpoint where the service provider redirects the user to initiate the SAML authentication flow.
  • Logoff URL Specifies where the Arc user is redirected after logging out of the application.
  • Just-in-Time (JIT) Provisioning Whether a new user account is created automatically in Arc when a user first logs in. User details are based on the attributes provided in the SAML assertion.
  • Default Role The Role (Support, Standard, or Admin) assigned to accounts created during JIT provisioning. If you select No Default Role, the role specified in the SAML assertion is used.

Configuring Microsoft Entra ID for SSO

The following sections explain how to set up Microsoft Entra ID for SSO via either OpenID Connect or SAML 2.0.

OpenID Connect Configuration

Single sign-on (SSO) with Microsoft Entra ID streamlines access to CData Arc, enabling just-in-time provisioning at the time of login. The following steps explain how to set up Microsoft Entra ID for SSO with the OpenID Connect protocol.

  1. Log in to the Azure portal and open Microsoft Entra ID.

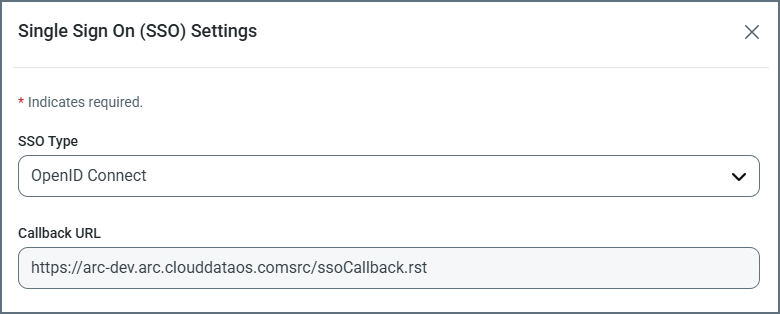

  2. Log in to CData Arc and select Settings > SSO to open the Single Sign-On (SSO) Settings dialog box.

  3. Browse to Entra ID > App registrations > New registration and create an application registration for Arc. Follow the prompts to complete the process.

  4. In your app registration, set the redirect URL to the Callback URL value that is specified in the Single Sign-On (SSO) Settings dialog box in Arc, as shown below.

  5. In the Single Sign-On (SSO) Settings dialog box in Arc, specify the following properties:

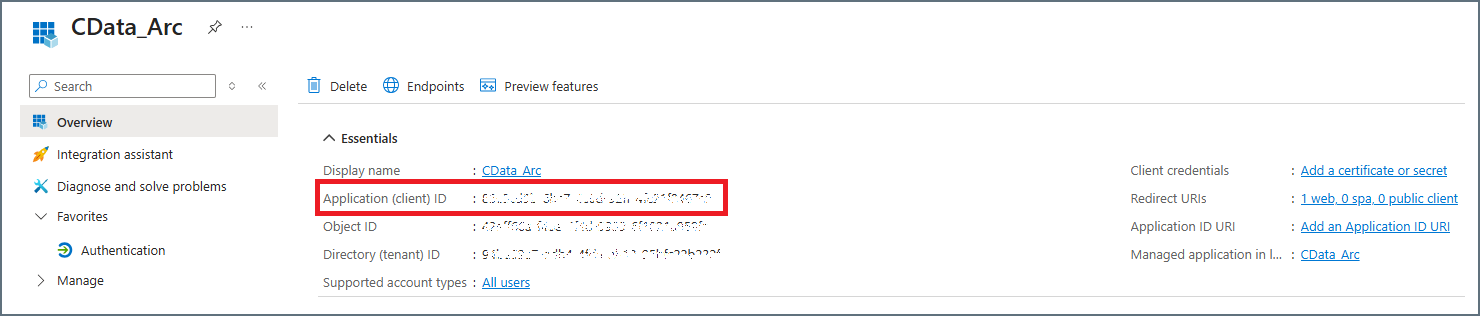

    1. Set the Client ID property to the value of Application (client) Id that is found in the new app registration shown below.

    2. Set the Client Secret property to the value of the new client secret that you created in the Client credentials section of your app registration.

    3. Set Discovery URL to the OpenID Connect MetaData document value from the Endpoint page in your app registration. Then, click Import to import the remaining settings into Arc.

  6. Click Save and Test in Arc to verify the SSO configuration. Arc opens a new tab and prompts you to sign in to your Microsoft account. If the test succeeds, Arc displays a success message along with claim details.

  7. (Optional) Update your Arc user account with your federation Id.

    1. Copy the federation Id from the Single Sign-On (SSO) Settings dialog box in the step 5.

    2. Navigate to Settings > Users. Then, locate your user account and click Edit.

    3. Add the federation Id to your user account. Then click Save to save your change and exit the dialog box.

At this point, you have completed the basic OpenID Connect SSO setup, allowing your users to log in to Arc through Microsoft Entra ID.

SAML 2.0 Configuration

With SAML-based single sign-on (SSO), users can seamlessly authenticate through their organization’s identity provider, enabling just-in-time provisioning at the time of login. The following steps explain how to set up Microsoft Entra ID SSO with the SAML 2.0 protocol.

  1. Log in to the Azure portal and open Microsoft Entra ID and navigate to the Enterprise applications page.

  2. Select New application > Create your own application. In the Create your own application dialog box:

    1. Enter a name for your application (for example, CData Arc).

    2. Specify what you want to do with your application by selecting one of the options under What are you looking to do with your application?

    3. Click Create.

  3. In your newly created application, select Set up single sign on.

  4. Select SAML as the sign-on method.

  5. Log into CData Arc and select Settings > SSO. On that SSO tab, click Configure in the Single Sign On (SSO) Settings section. This action displays the Single Sign On (SSO) Settings dialog box.

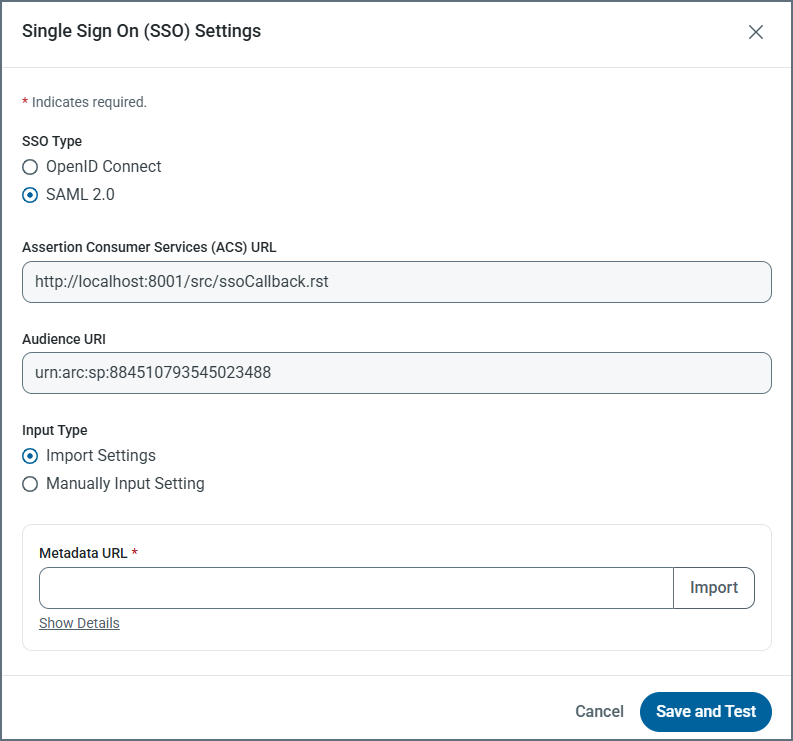

  6. Select SAML 2.0. This selection displays the Assertion Consumer Services (ACS) URL and the audience URI.

    Note: Keep this dialog box open because you need to return to it later in these steps.

  7. In Entra ID, set Reply URL (Assertion Consumer Service URL) to the Assertion Consumer Services (ACS) URL value in Arc. Then, set Identifier (Entity ID) in Entra ID to the Audience URI value in Arc.

    Note: Leave the Sign on URL text box empty if you plan to use sign-on initiated by your identity provider.

  8. In the Arc Single Sign-On (SSO) Settings dialog box, set Discovery URL to the App Federation Metadata URL value that is found in Entra ID. Then, click Import to import the remaining settings into Arc.

  9. Click Save and Test in Arc to verify the SSO configuration. Arc opens a new tab and prompts you to sign in to your Microsoft account. If the test succeeds, Arc displays a success message along with claim details.

  10. (Optional) Update your Arc user account with your federation Id.

    1. Copy the federation Id from the Single Sign-On (SSO) Settings dialog box in the step 9.

    2. Navigate to Settings > Users. Then, locate your user account and click Edit.

    3. Add the federation Id to your user account. Then click Save to save your change and exit the dialog box

At this point, you have completed the basic SAML SSO setup, allowing your users to log in to Arc through Microsoft Entra ID.

Configuring Okta for SSO

The following sections explain how to set up Okta for SSO via either OpenID Connect or SAML 2.0.

OpenID Connect Configuration

Single sign-on (SSO) with Okta streamlines access to CData Arc, enabling just-in-time provisioning at the time of login. The following steps explain how to set up Okta for SSO with the OpenID Connect protocol.

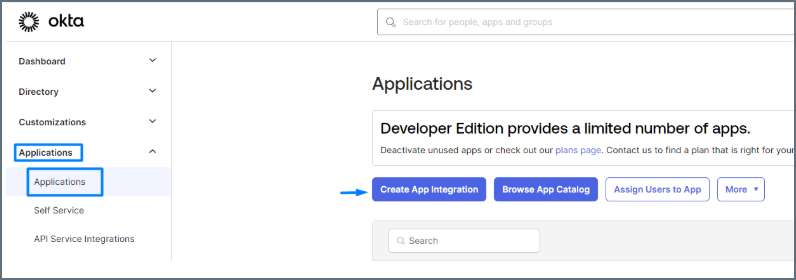

  1. Log in to the Okta Admin Console and select Applications > Applications > Create App Integration.

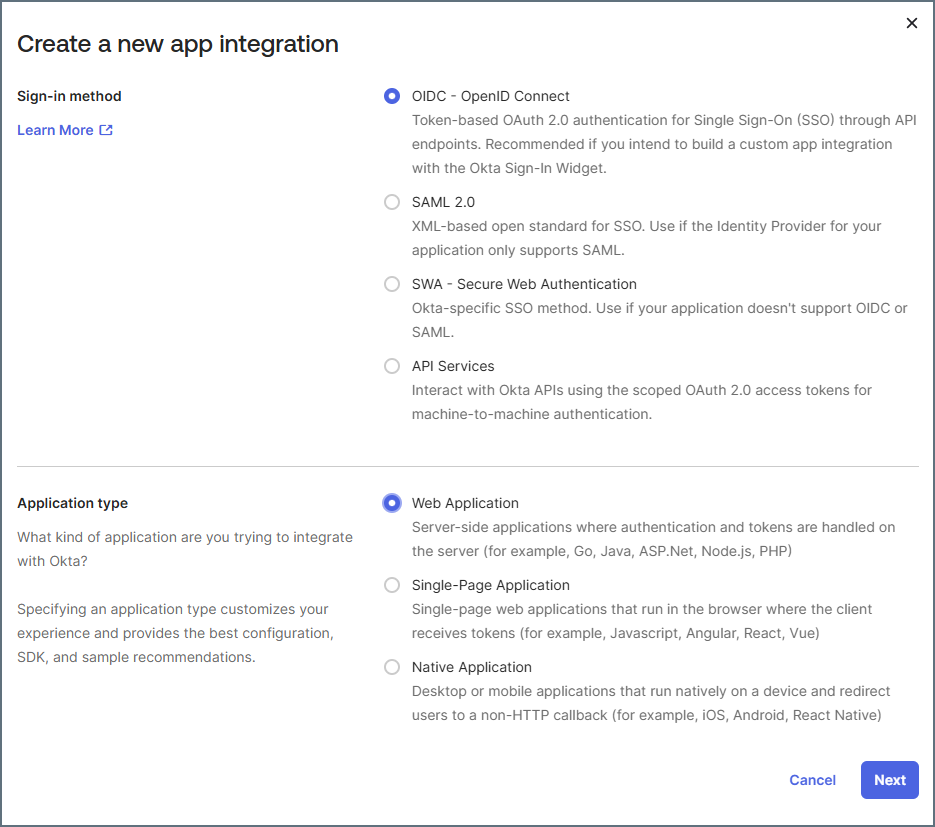

  2. In the Create a new app integration dialog box, select OIDC - OpenID Connect for Sign-in method and Web Application for Application type. Then click Next.

  3. Log in to CData Arc and select Settings > SSO to open the Single Sign-On (SSO) Settings dialog box.

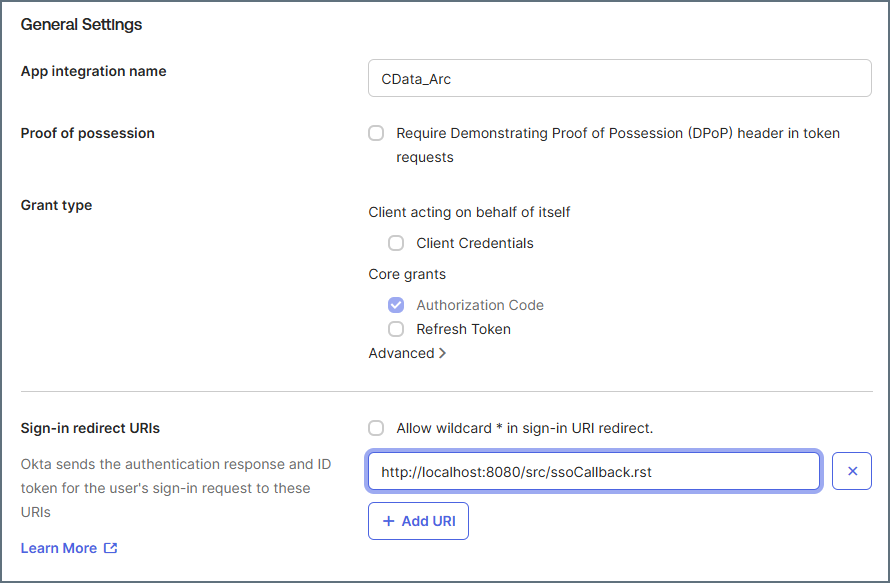

  4. In Okta, set the redirect URI to the Callback URL value that is specified in the Single Sign-On (SSO) Settings dialog box in Arc, as shown below.

    Then, click Next to create your application.

  5. Locate and copy the Issuer URL, as follows.

    1. Click the Sign-On tab for your application in the Okta Admin Console.

    2. Scroll to the OpenID Connect ID Token section.

    3. Copy the URL from the Issuer field.

    Note: If you want to sign in through an authorization server, you must obtain the Issuer URL for that particular server. In the Okta Admin Console, click Security in the left navigation pane, and then select API to display the Authorization Servers list. Locate your authorization server and copy the URL from the Issuer field.

  6. In the Single Sign-On (SSO) Settings dialog box in Arc, specify the following properties:

    1. Set the Client ID and Client Secret properties to the corresponding values that are found on the General tab in Okta

    2. Set Discovery URL to the Issuer URL that you copied previously, and append the OpenID Connect Discovery endpoint (.well-known/openid-configuration).

      Example: https://MyOrganization.okta.com/.well-known/openid-configuration

      Then, click Import to import the remaining settings into Arc.

  7. Click Save and Test in Arc to verify the SSO configuration. Arc opens a new tab and prompts you to sign in to your Microsoft account. If the test succeeds, Arc displays a success message along with claim details.

  8. (Optional) Update your Arc user account with your federation Id.

    1. Copy the federation Id from the Single Sign-On (SSO) Settings dialog box in the step 5.

    2. Navigate to Settings > Users. Then, locate your user account and click Edit.

    3. Add the federation Id to your user account. Then click Save to save your change and exit the dialog box.

At this point, you have completed the basic OpenID Connect SSO setup, allowing your users to log in to Arc through Okta.

SAML 2.0 Configuration

With SAML-based single sign-on (SSO), users can seamlessly authenticate through their organization’s identity provider, enabling just-in-time provisioning at the time of login. The following steps explain how to set up Okta for SSO with the SAML 2.0 protocol.

  1. Log in to the Okta Admin Console and select Applications > Create App Integration. This step opens the Create a new app integration dialog box.

  2. Select SAML 2.0 as the sign-in method. Then, click Next, which opens the Create SAML Integration dialog box.

  3. Enter a descriptive name (for example, CData Arc) for your application in the App Name text box. You can also add a logo for your application, if you choose. Then, click Next.

  4. In the Arc application, click the SSO tab on the Settings page. On that tab, click Configure in the Single Sign On (SSO) Settings section. This action displays the Single Sign On (SSO) Settings dialog box.

  5. Select SAML 2.0. This selection displays the Assertion Consumer Services (ACS) URL and the audience URI.

    Note: Keep this dialog box open because you need to return to it later in these steps.

  6. In Okta, enter the Assertion Consumer Services (ACS) URL value from Arc into the Single sign on URL text box. Then, enter the Audience URI value from Arc into the Audience URI (SP Entity ID) text box. You can leave the default settings for the remaining Okta fields.

  7. In Arc, set Discovery URL to the domain of your registered Okta organization, followed by /oauth2/default/.well-known/openid-configuration.

    Example: https://trial-1234567.okta.com/oauth2/default/.well-known/openid-configuration

    Then, click Import to import the remaining settings into Arc.

  8. Click Save and Test in Arc to verify the SSO configuration. Arc opens a new tab and prompts you to sign in to your Microsoft account. If the test succeeds, Arc displays a success message along with claim details.

  9. (Optional) Update your Arc user account with your federation Id.

    1. Copy the federation Id from the Single Sign-On (SSO) Settings dialog box in the step 8.

    2. Navigate to Settings > Users. Then, locate your user account and click Edit.

    3. Add the federation Id to your user account. Then click Save to save your change and exit the dialog box.

At this point, you have completed the basic SAML SSO setup, which enables you to log in to Arc through Okta.

Just-in-Time (JIT) User Provisioning

As mentioned earlier, Just-in-Time user provisioning enables Arc to create and manage user accounts automatically at first login by using information that is provided by your identity provider. JIT provisioning is particularly useful when users access Arc through an identity provider for the first time, and the application receives a secure message confirming their identity. The resulting account is assigned a default role, as specified in the SSO settings. This functionality streamlines user onboarding and ensures account details remain consistent with identity claims.

When a user logs in to Arc by using SAML or OpenID Connect, Arc searches for that user via a federation Id.

  • If a user does not exist, Arc creates a new user automatically by using the information that is provided in the authentication claim.

  • If a user does exist, Arc updates the user’s username and email if they do not match the claim values.

Requirements and Mappings in your Identity Provider

Identity-provider requirements vary depending on whether you use SAML 2.0 or OpenID Connect. This section explains claim requirements for each authentication method.

OpenID Connect

  • By default, subcontrols are mapped to the user’s role and the claim is mapped to the federation Id. As an option, admin users can use a different field (for example, oid) by setting the Key Claim property in Arc.

  • The Email claim maps to Email Address in Arc.

  • The preferred_username claim maps to name in Arc.

SAML 2.0

  • The NameID and Email claims are required.

  • (Optional) You can add the Name claim, which maps to Username in Arc.

  • (Optional) You can add the Role claim, which controls the user’s role.

JIT Configuration in Arc

To enable and configure JIT provisioning in Arc:

  1. Enable JIT provisioning, as follows:

    1. Select Settings > SSO in Arc.

    2. Click the tablet and pencil tablet and pencil icon to open the Just-in-Time (JIT) Provisioning dialog box.

    3. Select Enabled under the JIT Provisioning category.

    4. (Optional) Set a default role by selecting a role from the Default Role list.

    5. Click Save to save your selection and exit the dialog box.

When a user logs in, Arc adjusts the role based on the following order:

  1. If the claim contains a role, Arc searches for that role and updates the user account.

  2. If the role claim does not exist or is invalid, Arc uses the configured default role.

  3. If a default role is not configured, the user account has no role and the Admin user must update the user’s role manually.
