The Settings page contains global settings and user management tools. To launch the page, click the gear icon on the navbar.

User Management and Roles

The Users tab contains a table of the users that are authorized to access the application. This table displays the credentials, roles, and status for each user. Use this tab to add users, change a user’s status, or manage their permissions and auth tokens.

The Roles tab displays a table of all roles in the application, including the three built-in roles and all custom roles. From here you can define additional roles and the policies that make up those roles, and assign users to roles. A policy is a set of permissions that determine exactly how users can interact with the application.

For more information, see User Management and Roles.

Certificates

The Certificates tab displays a sortable table of all certificates that are used and managed by the application. Use this tab as a reference to quickly determine which certificates are in use by which connectors in the flow.

Alerts

Use the Alerts tab to configure intelligent monitoring that keeps you informed with timely alerts for system health, certificate expirations, processing errors, and critical events before they impact your operations. You can also use it to configure custom alerts.

Connections

The Connections tab lists configured connection parameters that can be shared among multiple CData Arc connectors.

Security

The Security tab contains several sets of security related-settings.

• Single Sign-On (SSO) enables you to set up SSO via either the SAML 2.0 or OpenID authentication protocols.
• Sign In Settings enable you to configure global sign-on requirements that govern authentication and password management.
• Network Access settings provide additional security to Arc by allowing you to set or ban specific IP addresses or ranges.
• Admin API includes settings related to Cross-Origin Resource Sharing (CORS) and whether auth tokens can be passed in query string parameters for authentication.
• Proxy Settings enable you to configure global inbound and outbound proxy settings.

Vault

The Vault tab enables you to add and manage values that you can re-use throughout the Arc admin console.

Advanced

The Advanced tab holds several categories of configuration options:

• Cleanup Settings cover options related to database and log file cleanup intervals. These options are designed to improve application optimization and free up disk space.
• Performance Settings options allow you to define global settings for the Automation service.
• AI Settings options control the behavior of AI features.

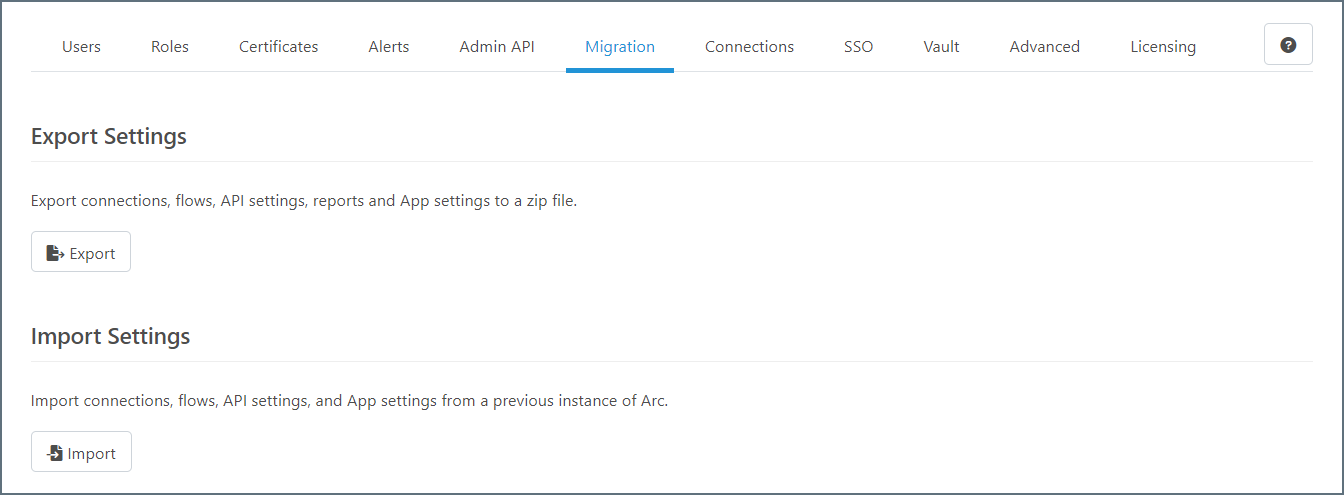

• Migration options enable you to perform a full import or export of your application, including all of the global application data and settings.
• Additional Settings includes a number of different settings, including whether to show beta and deprecated connectors, the default log level, time format settings, and more.

License

The License tab displays your licensing information. Use it to quickly review your connector usage, see which enterprises features you have enabled, check your disk space usage, and more.
