Tasks control the data flow from a source into a destination table. In a standard replication job, all source tables and views are available to be added to the job as replication tasks.

Accessing Tasks in a Job

To access tasks in your job:

1. Click Jobs in the navigation bar to open the Jobs page.

2. Select your job and click the Task tab to open a table of tasks for the job.

Adding a Task to a Job

To add a task to a job:

1. Select the task or tasks that you want to add to your job from the table of tasks. You also can enter the name of a task in the Search field to locate a specific task.



   Note: To include all tasks, select the checkbox next to the job source and destination at the top of the table.

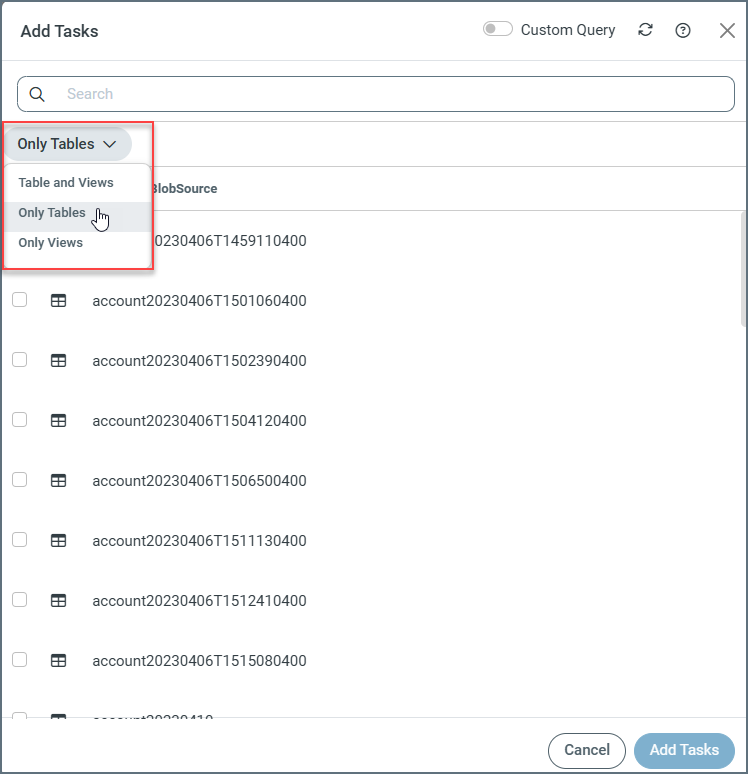

   By default, Sync displays all tables and views in the Add Tasks dialog box. However, you can choose to display a list of tables only or views only by selecting the type that you want to see from the drop-down menu above the tasks list.



   Note: When you select Only Tables or Only Views and no list appears for the entity that you choose, the following message is displayed:



2. Click Add Tasks to add the tasks to your job.

3. Select the checkbox next to individual tasks that you want to run in your job (on the Task tab). If you want to include all tasks, select the checkbox next to the job source and destination at the top of the table.

4. Run the tasks that you want by selecting the checkboxes to the left of those tasks. Then click Run in the bulk edit bar that is displayed. You can also run a specific task by clicking the Run arrow at the end of the task row.

   CData Sync automatically builds the replication tasks and saves your job. When a task runs correctly, Sync displays the message Successful appears in the Last Run column.

Notes:

• If you select the Sync All option as the replication type when you create your job, all available tables and views are added automatically as replication tasks to the job. Each time the job executes, Sync first searches for any new tables or views in your source and appends additional replication tasks to your job so that they are included in the run.

• If you want to exclude certain tasks from the job, select the tasks on the Task tab and click Exclude. When you do this, future job executions ignore those tables.

• Click the Refresh button () on the Task tab to clear the metadata cache and obtain the most up-to-date table listing.

Pausing and Resuming Tasks

CData Sync enables you to pause and resume tasks. A task’s Active or Paused status only determines whether the task runs when the entire job is executed (either on a schedule or manually). However, you can still run a paused task directly at any time.

Pause Tasks

To pause a task, do one of the following:

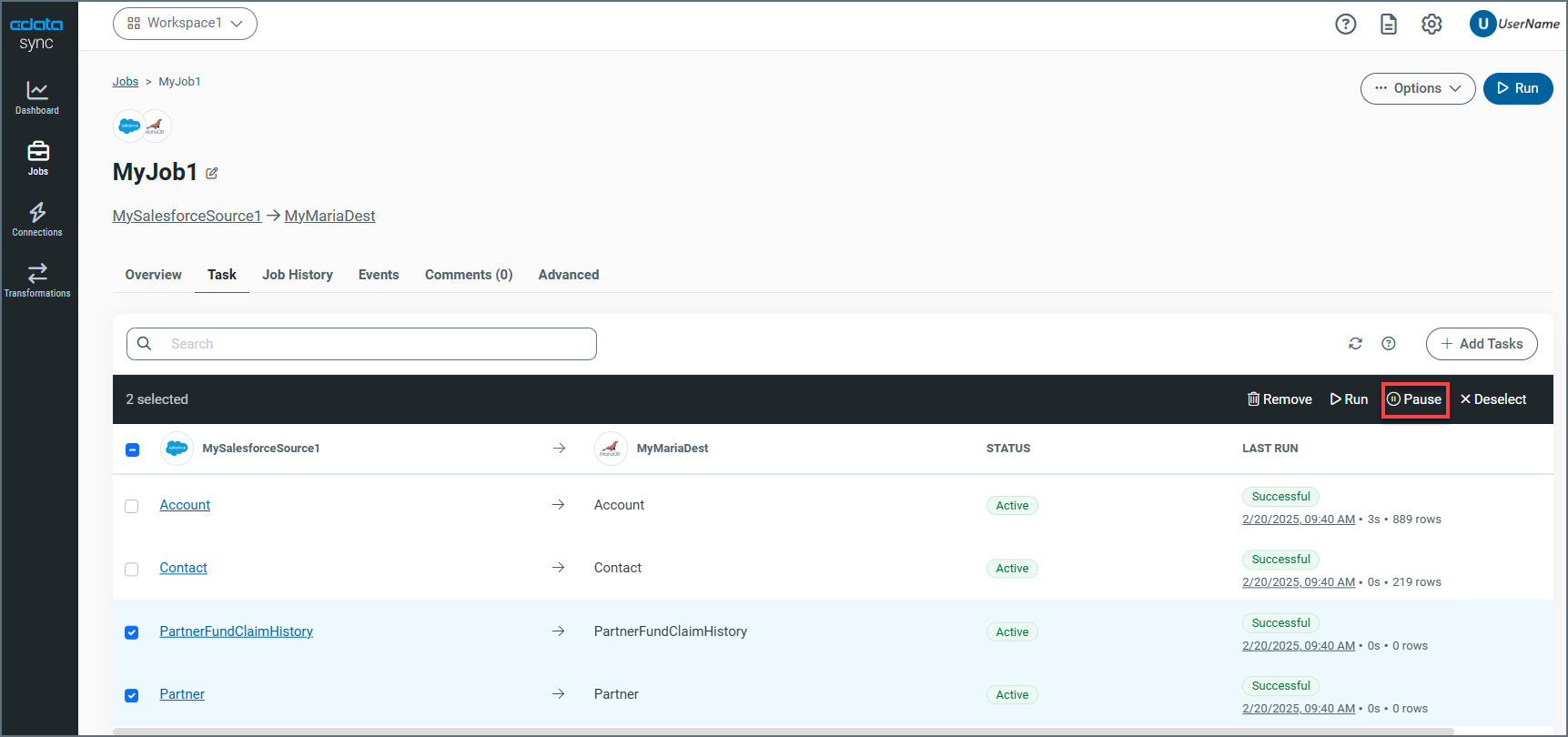

• Pause multiple tasks: Select the checkboxes for one or more tasks. When the bulk edit bar appears at the top of the table, click Pause.

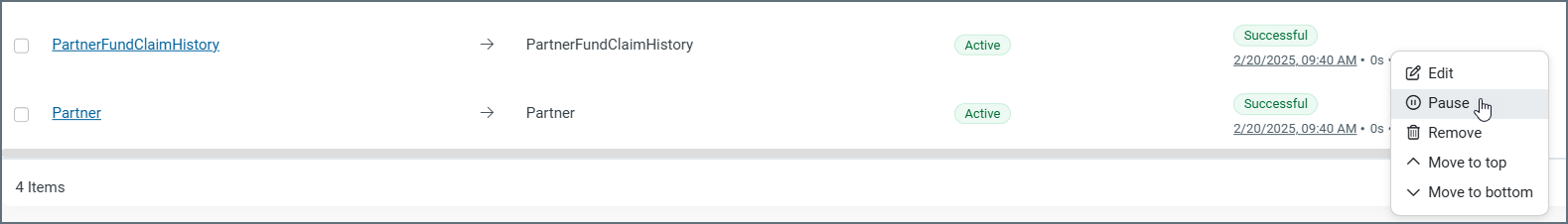

• Pause a single task: Click the options menu (…) at the end of the task’s row and select Pause. You do not need to select the checkbox next to the task name when you use this method.



  This method pauses only that specific task, whereas the Pause option on the bulk edit bar enables you to pause multiple tasks at once.

When a task is paused, the value in the STATUS column changes from Active to Paused.

Note: Even though a task is paused, you can still run it by selecting the task and clicking Run on the bulk edit bar or by selecting … > Run at the end of the task row.

Resume Tasks

To resume paused tasks, use either of the following methods:

• Resume multiple tasks: Select the checkboxes for the tasks. Then, click Resume on the bulk edit bar.

• Resume a single task: Select … > Resume at the end of the task row. You do not need to select the checkbox next to the task name to use this method.

Task Settings

You can configure each task in your job individually by clicking a row on the Task tab. This action opens the task’s properties page where you can adjust the task settings that are described in the following sections.

Source Information

The Source Information category provides an overview of the source table’s capabilities and key features:

• Key/Index Column: Specifies the column or columns that make up the primary key index for the table.

• Incremental Check Column: Specifies the column that is used by CData Sync to identify new or modified records during subsequent replication intervals. See Incremental Check Column for more information.

• Captures Deletes: Specifies whether Sync can detect when data has been deleted in the source. See Deletion Captures for more information.

Destination Information

The Destination Information category gives you full control over where to land your source data.

This category provides an overview of the following options:

• Schema Name: The schema name is inherited from the Destination Schema advanced job option. For destinations that support multiple schemas, select from a list of available schemas in your database.

• Table Name: By default, Sync creates a new table with the same name as the source table in the target destination where you want to replicate the data. You can rename that table by clicking the edit icon in the Destination Information category and then renaming the table in the Table Name field of the Destination Information dialog box.

Column Mapping

The Columns tab gives you more control over which data to retrieve from your source table and how you want that data to be represented in the target table. See Mapping Columns for information about how to remove or adjust column mappings and apply different transformations to each task.

Replication Options

Replication options control the flow from your source application to your target destination. While you can set replication options in your job that affect the job as a whole, replication options that you set in the query only affect that specific query. By default, each replication option that you set in the job is inherited by each query, and any replication option that you set in the query overrides those values.

Write Custom Queries

The task settings on the Overview tab automatically update the REPLICATE query as you make changes in the dialog boxes. In addition, you can click the Query tab to edit the generated query manually. See Custom Querying: REPLICATE Command for REPLICATE command syntax; see Custom Querying: CHECKCACHE Command for CHECKCACHE command syntax. Each of these pages contain common examples, as well.

Load Folder

For connectors that support the Load Folder job type, Sync enables you to configure a single LoadFolder task that continuously replicates files from a directory or bucket into a single destination table. Connectors that support the Load Folder job type include the following:

• Amazon S3

• Azure Blob Storage

• Azure Data Lake Storage

• Azure One Lake

• CSV

• Google Cloud Storage

• Local File Storage

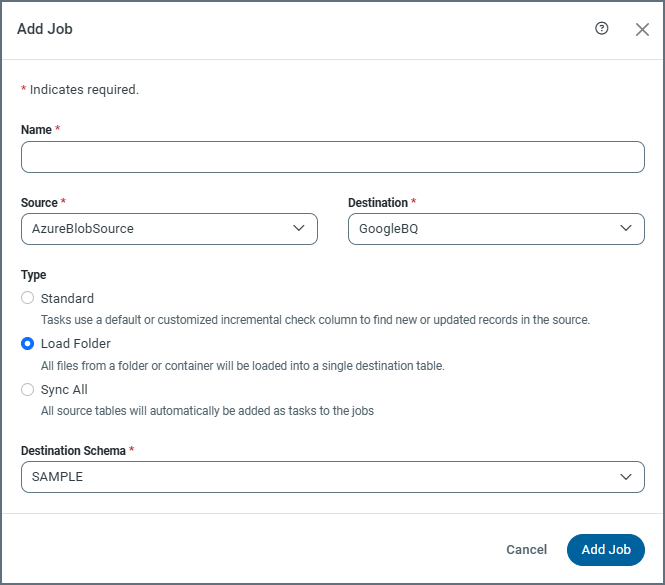

When you create a job with one of the valid connectors, you can set the Load Folder type in the Add Job dialog box, as shown below:

When Sync runs a LoadFolder task, it compares the last modified date of each source file to the value stored in the destination table. To help facilitate this task, Sync adds these required system columns to your destination table:

Column Name	Data Type	Primary Key
_filename	Varchar	Yes
_line	Integer	Yes
_lastModified	BigInt	Yes if Modified Action = APPEND

Configuring Load-Folder Task Settings

To configure LoadFolder task settings, select Load > Task Settings. The Task Settings page is divided into two categories: Source Information and Destination Information.

Click Edit () in the Source Information category. In the Source Information dialog box, you can configure the following properties:

• Modified Action - Determines how updates are handled when a previously replicated file changes:

  • APPEND - Appends all rows from the modified file.

  • UPSERT - Updates existing rows and inserts new rows as needed.

• Folder - Specify the folder or subpath folder from which files are replicated.

• File Mask - Defines a search pattern to match specific file names within the folder.

Click Edit () in the Destination Information category. In the Destination Information dialog box, you can configure the following properties:

• Schema Name: Select one or more schemas. For destinations that support multiple schemas, you can select from a list of available schemas in your database.

• Table Name: Select the destination table name. By default, Sync creates a new table with the same name as the job name in the target destination where you want to replicate the data. You can rename the table by selecting Create New Table.

Mapping Columns

After you create a Load Folder task, you can choose a sample file from which to build the column mapping from the Columns tab on the Task Settings page. See Mapping Columns for more information about how to edit the mappings and apply different transformations to the task.
