A CData Sync job is a unit of execution that includes the source connection, the destination connection, and a set of one or more tasks that represent data flows for different tables. All the tasks within a job are executed sequentially, which enables you to order data flows as you see fit.

The following sections explain the features of the Jobs summary page as well as the following tasks:

• adding a new job

• cloning a job

• adding labels to jobs

• editing job settings

• exporting a job

• importing a job

• moving a job between workspaces

• enabling and disabling the job scheduler

• starting and stopping jobs

Viewing Your Jobs

To access the Jobs page, click the Jobs icon in the left navigation pane in the CData Sync interface. You can view a list of all your jobs from this page. The Jobs page has two tabs (Overview and History) that provide all the details about your jobs. The following sections explain the information on each of these tabs.

Overview Tab

The table on this tab summarizes your jobs and enables you to manage them from one access point.

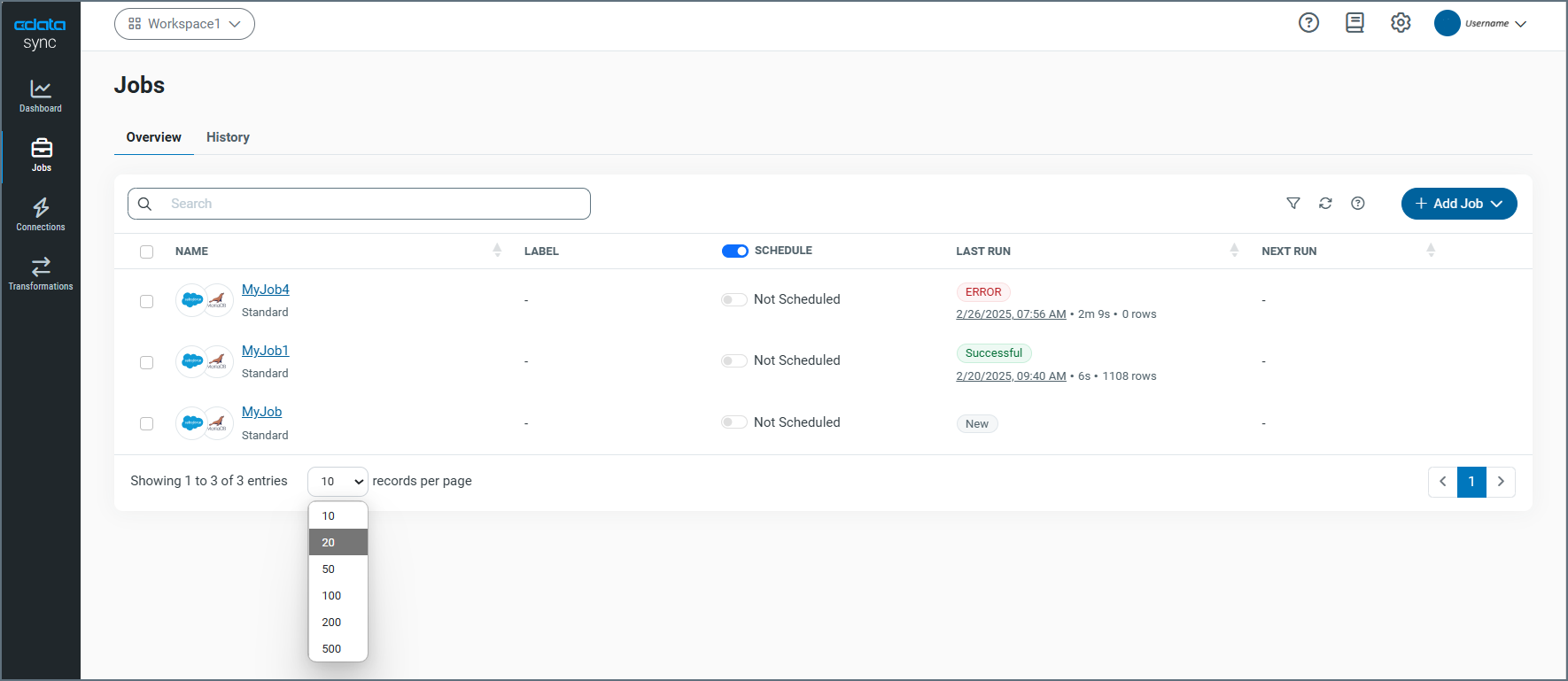

The job records are displayed in rows, with columns that provide details about each job. As shown above, you can specify the number of rows that you want to display on the page by selecting a number from the X records per page list at the bottom of the page.

Sync provides details about your jobs in five columns:

• NAME - Lists the name of the job, the source and destination connectors, and the job type.

• LABEL - Displays labels that you assign to your job. You add labels in either of these ways:

  • Select . . . > Add Labels at the end of the job row.

  • Click Add Labels in the Labels section on the Overview tab in the job settings.

• SCHEDULE - Specifies the run schedule for your job. For more details, see Enabling and Disabling the Scheduler.

• LAST RUN - Specifies the last date and time that the job ran, how long the job took to run, and the number of rows that were affected.

• NEXT RUN - Specifies the next date and time that the job will run.

If you click a job name, Sync opens the Settings page for that job.

You can organize your job list in ascending or descending order for the NAME, LAST RUN, or NEXT RUN columns. To order the columns, simply click the up (↑) and down (↓) arrows next to the column by which you want to sort.

In addition, you can filter the table by job type, status, source connection, destination connection, and label. After you set filters, you can clear all filter options by clicking the Reset link to the right of the filter menu. Sync also enables you to save filters that you define so that you can use them later.

To save a filter:

1. Choose your filter options.

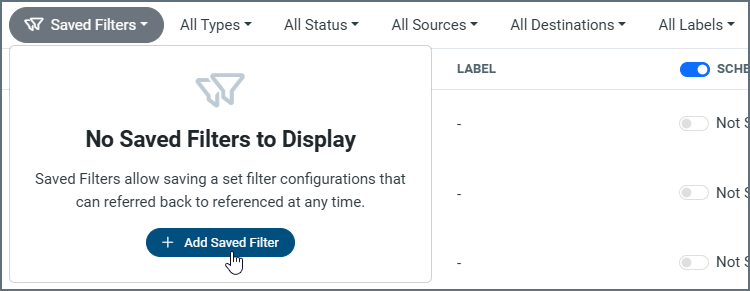

2. Select Saved Filters > Add Saved Filter.



   This selection opens the Add Saved Filter dialog box.

3. Enter a name for your filter. Then, click Add Saved Filter to save the filter and exit the dialog box.

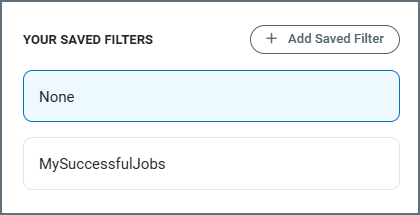

After you save the filter, the filter name appears in the Saved Filters list, as shown in this example:

Then, you can choose that filter from the list any time that you want to apply it.

History Tab

The History tab displays history information about jobs that you have run. The table on this page contains three columns with details about your jobs:

• NAME - Lists the name of the job, the source and destination connectors, and the job type.

• RUN DATE - Specifies the run status (Successful, Failed, or ERROR), the date and time that your job ran, how long the job took to run, and the number of rows that were affected. If an error occurs, the error message is displayed in this column.

• INSTANCE ID - Specifies the instance identifier (Id) that ran the job. This Id is important for clustered environments because it indicates which machine executed the job.

On this tab, you can also manage your job histories in the following ways:

• You can organize your job history list in ascending or descending order for the RUN DATE or INSTANCE ID columns. To order the columns, simply click the up (↑) and down (↓) arrows next to the column by which you want to sort.

• You can filter the history table by job type, status, source connection, and destination connection. Unlike other tabs, the History tab does not allow you to reset or save filter options. The only way you can clear a filter and return to the full table of jobs is to click the Jobs icon in the navigation bar.

• You can export the job history to your local machine by clicking the Export History button (upper right of the window). You can choose to export a history over 1, 2, or 5 days.

• You can edit settings for a job, download the history log, or obtain details by clicking the options menu (…) at the end of a job row and selecting the option that you want.



Adding a New Job

Adding a job requires preconfigured source and destination connections. After you define a source connection to your data source and a destination connection to your database, follow these steps to create a new job:

1. Click Jobs in the navigation bar to open the Jobs page.

2. Click Add Job > Add New Job. This action opens the Add Job dialog box where you can enter job information.

3. Enter a job name and select the source and destination connections.



4. Select a job type.

5. Click Add Job to create your new job and exit the dialog box.

From your specific job page (Jobs > YourJobName), you can set your job to run on a schedule, set incremental replication, and create email alerts. In addition, you can view your logs and job history to obtain more information or to troubleshoot errors.

Cloning a Job

Instead of adding an entirely new job, you can clone an existing job. Cloning a job creates a new job by copying the settings and tasks from the existing job. Follow these steps to clone a job.

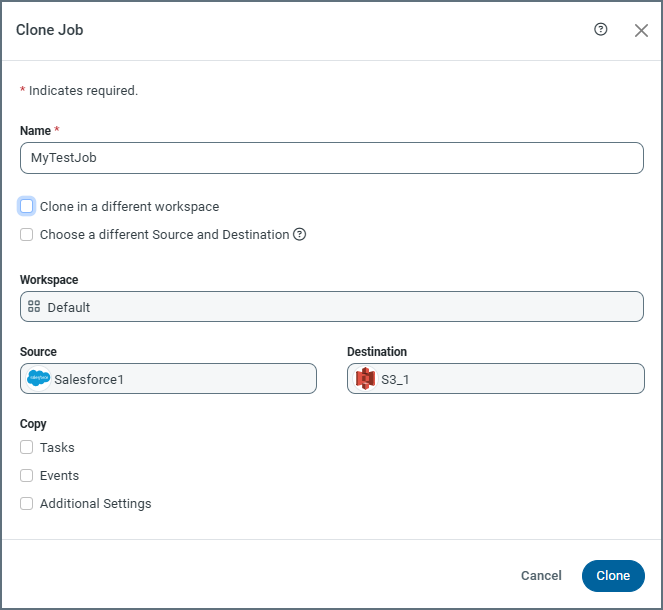

1. Locate the job that you want to clone and select Clone from the options menu (…). This option opens the Clone Job dialog box, where you can define what you want to clone.

   1. Enter a name for your new job.



   2. (Optional) Select the workspace in which you want to clone the job. By default, Sync creates the cloned job in the current workspace. If you want to clone it elsewhere, select Clone in a different workspace. When you choose this option:

      • The dialog box displays a New Workspace drop-down list from which you can select another workspace.

      • When you select Clone in a different workspace, Sync automatically selects Choose a different Source and Destination, by default. You also must select the source and destination again. You can select the original source and destination or you can choose new ones.

   3. (Optional) Select the Choose a different Source and Destination option if you just want to change the current source or destination.

      Note: For a cloned job, the new source connection must be of the same connection type as that of the original job. For example, if the original job uses a Salesforce source connection, the new job must also use a Salesforce source connection. However, you can select a different destination connection.

   4. Select any of the following optional settings that you want to use.

      Tasks - Copies all Tasks from the original job. Note: If you use a different source connection, you must verify that all the tables you add as tasks exist in your source before you run the job.

      Events - Copies all Events from the original job.

      Additional Settings - Copies alert, schedule, logging, and advanced settings from the original job.

2. Click Clone to create your cloned job and display it in the job table on the Jobs page.

Adding Labels to Jobs

Sync enables you to add labels to jobs, which can be useful for organization and tracking. Labels can be anything that you want, for example, the job priority level (for example,High Priority, Medium Priority, or Low Priority).

To add a label:

1. Click the Overview tab on the Jobs page.

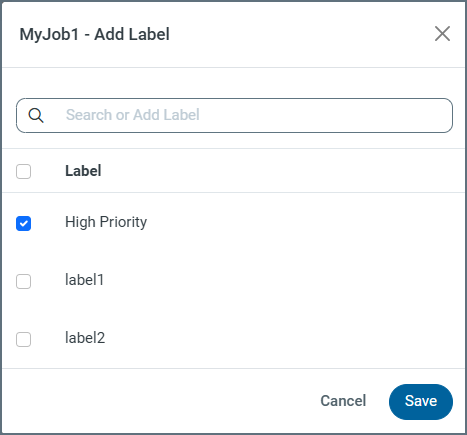

2. Select … > Add Labels from the end of the row for the job for which you want to add a label. This selection opens the JobName - Add Label dialog box.

3. In the Search or Add Label text box, enter the label that you want to add. Then click Add.

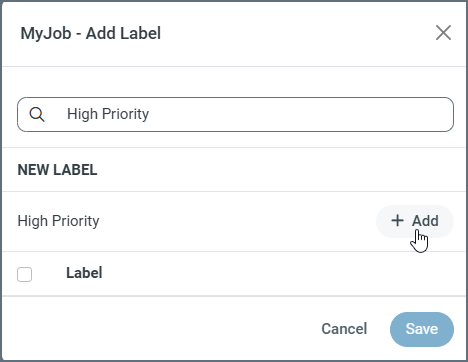

   The new text is added as the first label (Label), as shown below:



   Repeat this step if you want to include additional labels.

4. Click Save and your label is added to the Label column in the job row on the Overview tab.

After you create labels, you can also edit them in the JobName - Edit Labels dialog box by clicking Edit Labels on the options (…) menu in the job row.

Editing Job Settings

After you create a job, you might want to edit the settings and configuration options. For details about editing these settings and configurations, see Jobs.

Exporting a Job

You can export a job from the Jobs page to a location on your machine.

To export a job:

1. Open the Jobs page and click the Overview tab.

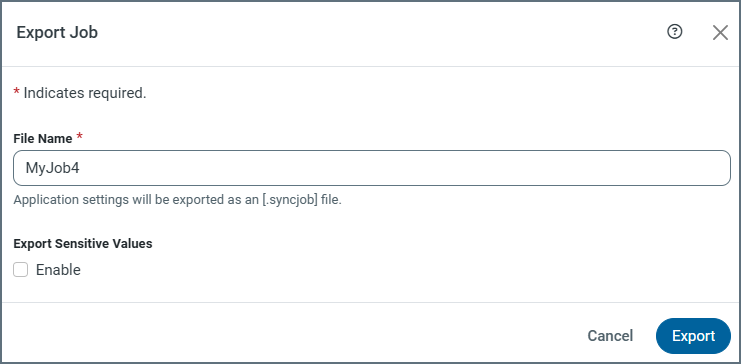

2. Select … > Export at the end of the job row in the jobs table. This selection opens the Export Job dialog box.



   By default, the job name is included in the File Name text box and the Enable option Export sensitive values is not selected. Application settings are exported as a SYNCJOB file (for example, MySettings.syncjob).

   If you enable the exporting of sensitive values, a Password text box is displayed. You must enter a password, which is used to export and encrypt sensitive values. You also need this password if you import the job at a later time.

3. Click Export to download your job. Sync exports the transformation to your Downloads folder. From there, you can move it to any other location on your machine. The resulting SYNCJOB file contains the details of the exported transformation, including the destination, tasks, and additional settings.

Importing a Job

Sync enables you to import a job from your machine to the Jobs list.

To import a job:

1. Select Add Job > Import Job from the Jobs page. This action opens the Import Job dialog box.

2. Click Choose File to open an explorer window where you can select the job that you want to import. (The job file must be a SYNCJOB file, as shown below.) Then, click Import to expand the dialog box.

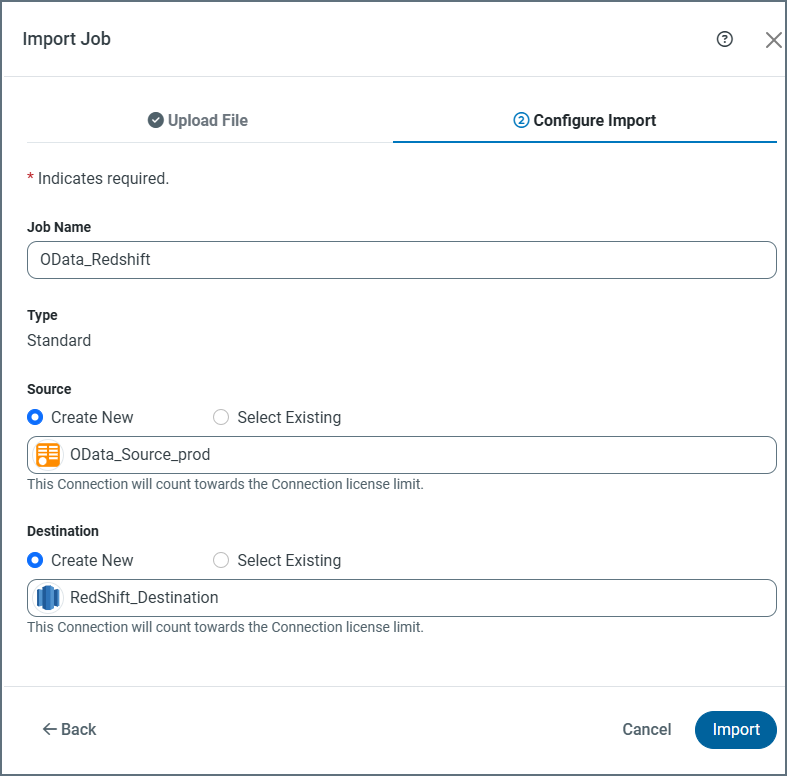

3. Keep the original job name or modify it, as necessary. Then, choose whether to create a new source and destination or to select an existing source and destination.

4. Click Import to import the job into the Jobs list.



Moving a Job between Workspaces

In Sync, a job can exist only in one workspace at a time. However, you can easily move a job from one workspace to another workspace, as follows:

1. Click the Overview tab on the Jobs page.

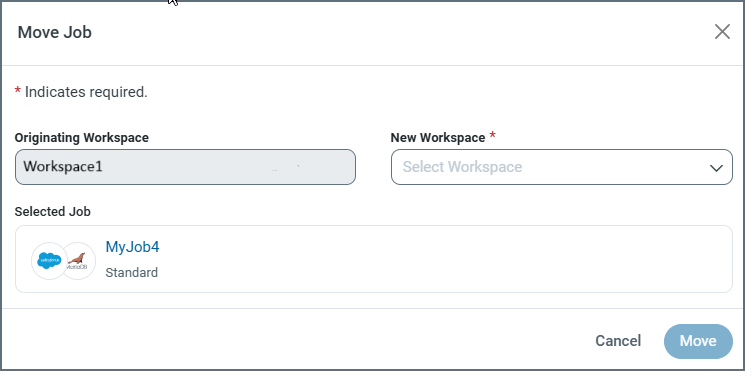

2. Select … > Move from the end of the row for the job that you want to move. This selection opens the Move Job dialog box, which displays the originating workspace.



3. Select the destination workspace from the New Workspace list.

4. Click Move to transport your job to the new workspace.

Enabling and Disabling the Scheduler

You can enable or disable the schedule via these two methods:

• the Schedule column on the main Jobs page (for all jobs)

• the Edit Schedule dialog box, available in the Schedule category on the Overview tab of an individual job’s settings page

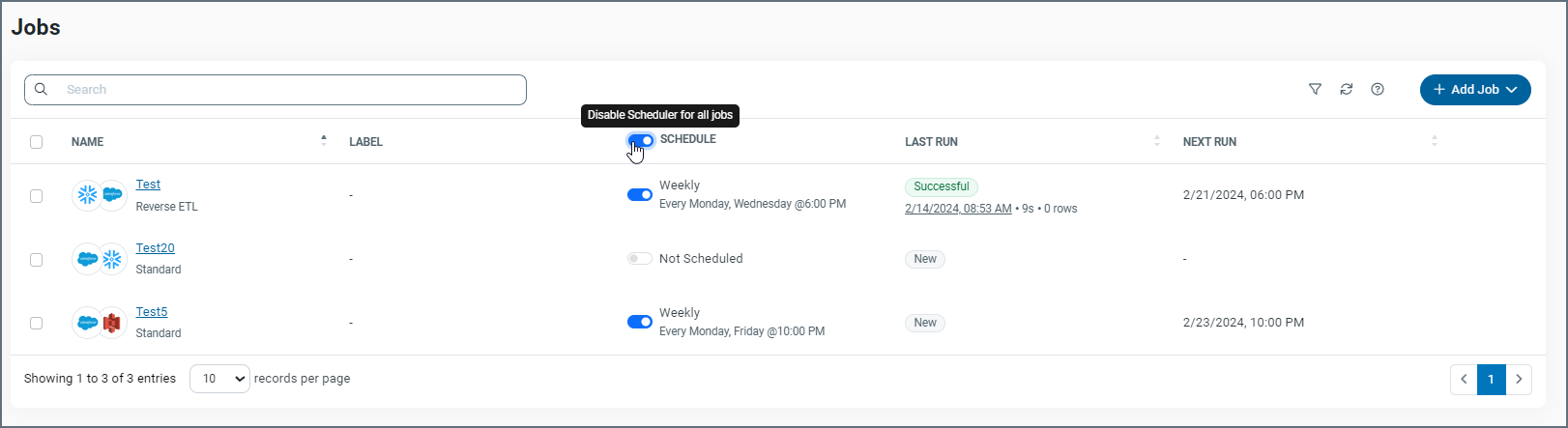

On the main Jobs page, you enable or disable the scheduler for all jobs by toggling the Schedule button in the SCHEDULE column.

Starting and Stopping Jobs

You can start a job by positioning your cursor over the entry for the job and clicking the Run Job (▷) icon.

When a job is running, you cancel that run by clicking the Stop Job Run (■) icon.

More Information

For more information about Sync jobs and how they work, see Jobs.
