Reports

The Reports page allows you to create reports about data trends in CData Arc. For example, you can generate a report about file processing times to see which steps in a flow take the longest to complete, or you can use a report to discover which connectors in a flow produce the most errors.

Availability

Reports are only available in the Arc Enterprise package. For information about Arc packages and licensing, see the Pricing & Packages page.

Only admin users can create, run, and delete reports. Standard and Support users can view the results of reports that have been run, but they cannot create new reports or run existing reports to generate new results. For more information about user roles, see User Management and Roles.

Creating and Managing Reports

If you have not created a report, the Reports page displays a welcome message and an Add Report button. If you have created at least one report, the page lists your reports.

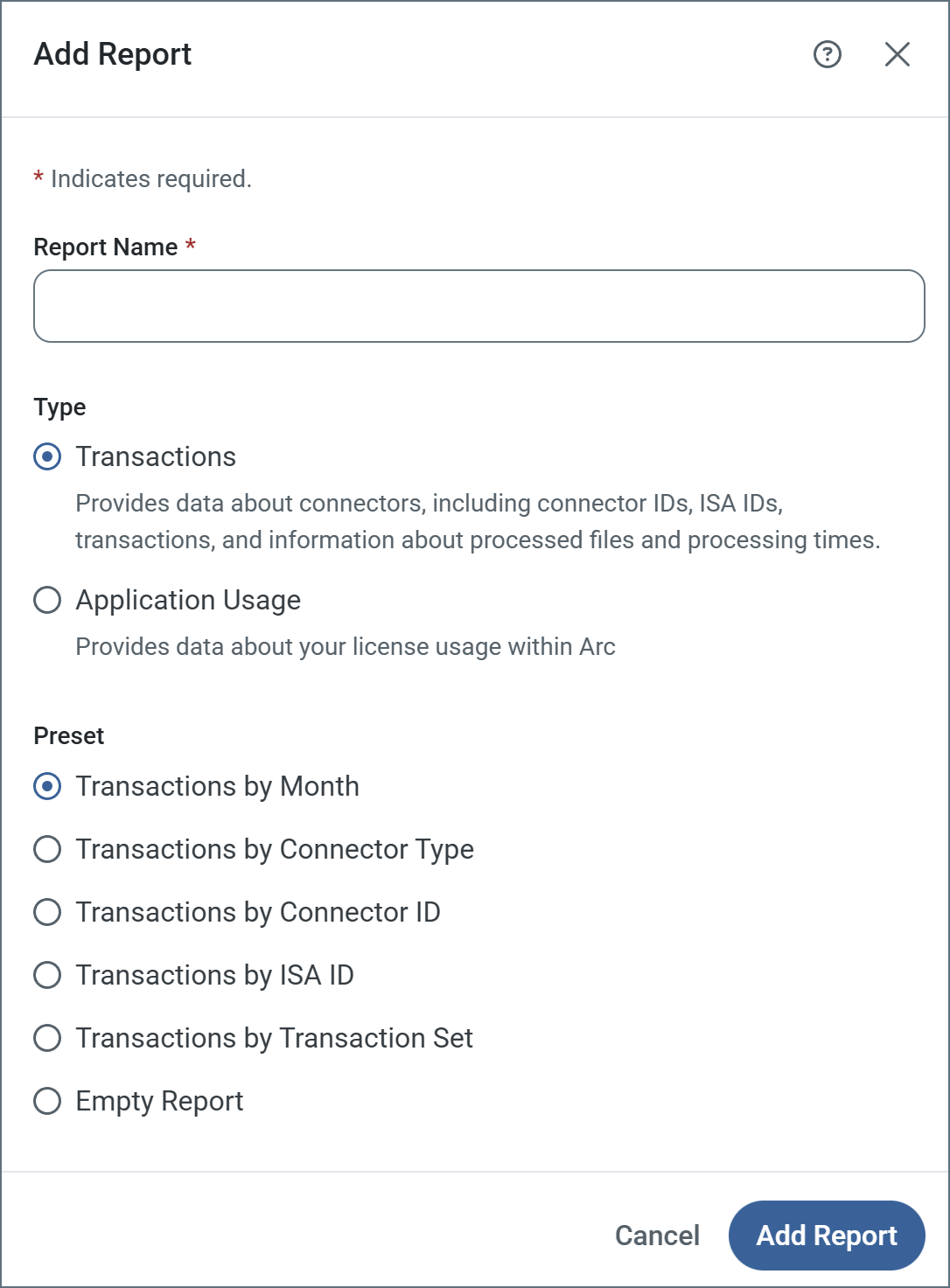

Creating a Report

Follow these steps to create a report:

  1. Click Add Report.

  2. Enter a Report Name.

  3. Select the report Type. You cannot change this value after the report is created.

    • Transactions—provides data about connectors, including connector Ids, ISA Ids, transactions, and information about processed files.

    • Application Usage—provides data about your Arc license usage.

  4. Select an option from the Presets list to serve as the template for your report. The template provides a functional base to build your report on, and you can modify the contents of your report as needed.

    Note: The Transactions by ISA Id and Transactions by Transaction Set preset reports rely on header tracking, and they only produce results if header tracking is enabled in the appropriate connectors in the flow. See X12 and EDIFACT for more information about these headers.

  5. Click Add Report to open the report view where you can build and run the report.

Accessing Generated Reports

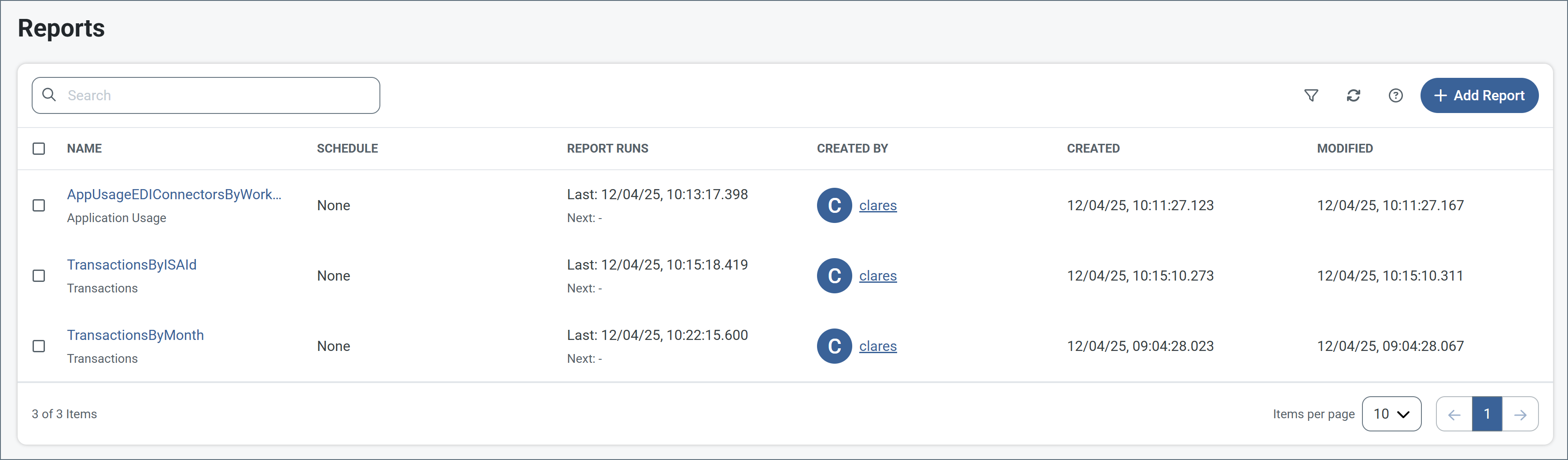

If you have created at least one report, the Reports page displays a searchable, sortable list of all of your reports.

  • Click a report in the list to open the report view for that report. From here you can modify and run the report.
  • To delete reports, select the checkbox next to each report, click Remove, then confirm whether to delete the selected report(s). To delete an individual report, click the ellipses and choose Remove.

Report View

When you open a report, the report view consists of two sections:

  • The main report view on the left shows the results of the most recent report run and includes the Export button.
  • The settings pane on the right consists of the Builder and Scheduler tabs. These allow you to build, run, and schedule the report.

Builder Tab

The Builder tab allows you to set the report parameters and run it. The parameters are:

Category Description
Time Period The period of time that the report covers. Selecting Custom Date Range adds two fields for the start date and end date for the report. The default is All-time.
Columns The information that the report generates. You can include as many columns as you need. See Columns for a list of available options.
Group by The fields to use when grouping results in the report. Each selected option receives its own column in the report. See Group By for a list of available options.
Filters Options for narrowing the report results. See Filters for a list of available options.
Data Summary Options for summarizing the values of each column. Enabling at least one option creates a Subtotal row for each report section and a Grand Total row at the bottom of the report. See Data Summary for a list of available options.

Note: Transaction reports all include any tracked headers you have defined in Arc. They appear in the lists of available column, group by, and filter options, and you can select them just like any other item.

Columns

The following options are available for Columns:

Column Description Transactions Reports Application Usage Reports
Workspace Workspace (such as Default) ✓ ✓
Connector Category Category (such as Core, EDI, or MFT)   ✓
Connector Id Connector Id (such as XMLMap1) ✓ ✓
Connector Type Type (such as XML Map) ✓ ✓
Year Year of the transaction ✓
Quarter Quarter of the transaction ✓
Month Month of the transaction ✓
Week Week of the transaction ✓
Sender ISA Id The ISA Id of the sender of an EDI document ✓
Receiver ISA Id The ISA Id of the recipient of an EDI document ✓
Transaction Set The standardized identification code for the type of document transmitted ✓
All Transactions Total number of sent and received transactions ✓
Transactions Sent Number of transactions sent ✓
Transactions Received Number of transactions received ✓
Total Processing Time Processing time (in milliseconds) of all transactions ✓
Total File Size Size of all files sent and received ✓
Successful Number of successful transactions ✓
Error Number of transaction errors ✓
Warning Number of transaction warnings ✓

Group By

The following options are available for Group by:

Group by Transactions Reports Application Usage Reports
Workspace ✓ ✓
Connector Category   ✓
Connector Id ✓
Connector Type ✓ ✓
Year ✓
Quarter ✓
Month ✓
Week ✓
Sender ISA Id ✓
Receiver ISA Id ✓
Transaction Set ✓

Filters

The following options are available for Filters:

Filters Transactions Reports Application Usage Reports
Workspace ✓ ✓
Connector Category   ✓
Connector Id ✓ ✓
Connector Type ✓ ✓
Status ✓
Sender ISA Id ✓
Receiver ISA Id ✓
Transaction Set ✓

Data Summary

The following options are available for Data Summary:

Summary Transactions Reports Application Usage Reports
Total ✓ ✓
Average ✓
Minimum ✓
Maximum ✓

Scheduler Tab

The Scheduler tab allows you to set an automatic schedule for running the current report. This can be useful if you have reports you are interested in viewing regularly, without having to log into the application to get the data.

By default, the Frequency is set to None, which means that the report does not run unless you manually execute it. To set the report to run automatically, set the Frequency to Monthly, Weekly, or Daily and configure the settings as needed. After configuring the schedule, click Save or Apply at the bottom of the Scheduler tab to save your changes. You can also click the Revert Changes icon to revert all changes to the last saved schedule values.

Note: If you have a schedule set, you can still manually run the report at any time by clicking Run on the Builder tab.

Email Report

If you configure a schedule and select Email Report, the application automatically sends an email with the report results when the scheduler runs. When this feature is enabled, two fields appear:

  • Subject specifies the subject of the automated report email.
  • Recipients accepts a comma-separated list of email addresses for the report recipients.

The email feature uses the same email server configuration that is specified on the Alerts page.

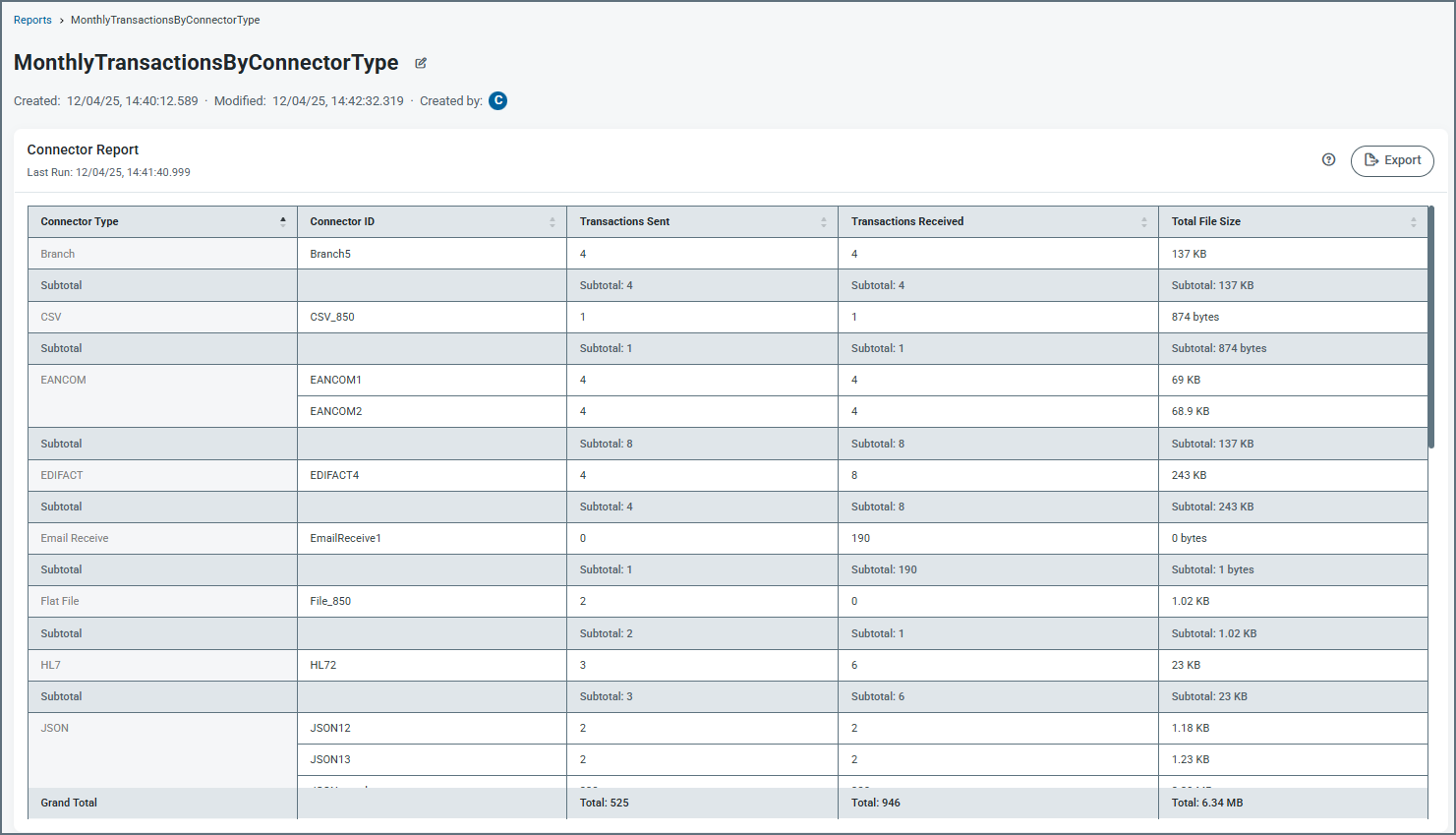

Main Report View

The main report view displays the results generated the last time the current report was run. You can sort each column of the report in ascending or descending order.

Above the report results, you can rename the report by clicking the tablet and pencil tablet and pencil icon next to the report name.

  • Click Export to export the most recent report results to a CSV file.
  • Click Save to save all changes to the current report.

Run, Save and Revert

At the bottom of the right-hand pane you always have three options:

  • Click the Revert Changes revert changes icon to revert all changes to the last saved version of the report.
  • Click Save to Save Changes to the existing report or to Save as a New Report.
  • Click Run to run the report with the current settings and display the results in the main report view area.
