In CData Arc, data travels through flows as Messages that consist of a body and metadata headers. For example, if one connector passes a file to another, the file is transmitted as a Message that contains the file in the body and metadata about the file and associated connectors as headers. Messages can be grouped together in Batch Groups, which allow multiple messages to travel together as a single unit. Some uses for Batch Groups include moving data between systems and processing multiple purchase orders at once. When a Message is part of a Batch Group, it is referred to as a Batch Message.

Key Capabilities

• Splits batch groups into individual messages for distributed processing
• Automatic correlation ID assignment for tracking related messages
• Preserves message relationships after split

Overview

The Batch Split connector splits Batch Groups that arrive in the Send folder (the Input tab of the connector settings pane) into individual messages. When a Batch Group is split, the individual messages are passed down the flow through the Output tab, where they can be processed by other connectors as needed.

Note: The Batch Split connector can only accept Batch Groups as inputs. If the connector receives an individual message as an input, it throws an error message.

Connector Configuration

This section contains all of the configurable connector properties.

Settings Tab

Configuration

Settings that determine how the connector can be accessed.

• Connector Id The static, unique identifier for the connector.
• Connector Type Displays the connector name and a description of what it does.
• Connector Description An optional field to provide a free-form description of the connector and its role in the flow.

Advanced Settings

Settings that specify Batch Grouping options.

• Correlation Id Header When the connector splits a Batch Group, it generates a value for the header based on the Batch Group MessageId, then assigns the same header and value to each individual message. If a message already has a Correlation Id Header and value, it does not receive the header and value that is assigned to the rest of the messages.

Automation Tab

Automation Settings

• Send When checked, the connector automatically splits Batch Groups as soon as they arrive in the Send folder (Input tab). If you uncheck this, you must manually instruct the connector to split Batch Groups.

Performance

Settings related to the allocation of resources to the connector.

• Max Workers The maximum number of worker threads consumed from the threadpool to process files on this connector. If set, this overrides the default setting on the Performance Settings portion of the Advanced Settings page.
• Max Files The maximum number of files sent by each thread assigned to the connector. If set, this overrides the default setting on the Performance Settings portion of the Advanced Settings page.

Alerts Tab

Settings related to configuring alerts.

Before you can execute Service Level Agreements (SLAs), you need to set up email alerts for notifications. By default, Arc uses the global settings on the Alerts tab. To use other settings for this connector, toggle Override global setting on.

By default, error alerts are enabled, which means that emails are sent whenever there is an error. To turn them off, uncheck the Enable checkbox.

Enter a Subject (mandatory), then optionally enter a comma-separated list of Recipient emails.

SLAs Tab

Settings related to configuring Service Level Agreements (SLAs).

SLAs enable you to configure the volume you expect connectors in your flow to send or receive, and to set the time frame in which you expect that volume to be met. CData Arc sends emails to warn the user when an SLA is not met, and marks the SLA as At Risk, which means that if the SLA is not met soon, it will be marked as Violated. This gives the user an opportunity to step in and determine the reasons the SLA is not being met, and to take appropriate actions. If the SLA is still not met at the end of the at-risk time period, the SLA is marked as violated, and the user is notified again.

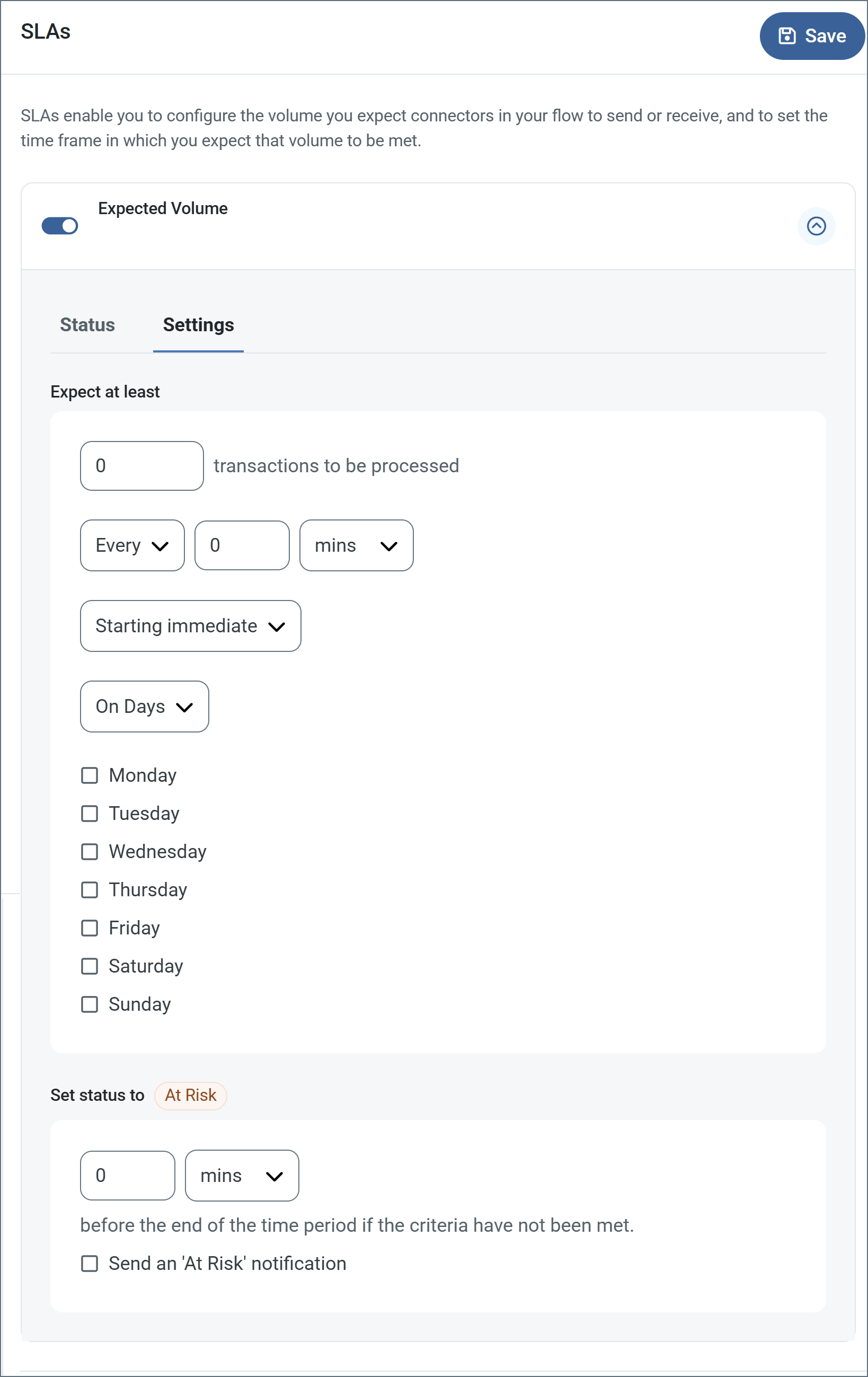

To define an SLA, toggle Expected Volume on, then click the Settings tab.

• If your connector has separate send and receive actions, use the radio buttons to specify which direction the SLA pertains to.
• In the Expect at least portion of the window:
  • Set the minimum number of transactions you expect to be processed (the volume)
  • Use the Every fields to specify the time frame
  • Indicate when the SLA should go into effect. If you choose Starting on, complete the date and time fields.
  • Check the boxes for the days of the week that you want the SLA to be in effect. Use the dropdown to choose Everyday if necessary.
• In the Set status to ‘At Risk’ portion of the window, specify when the SLA should be marked as at risk.
  • By default, notifications are not sent until an SLA is in violation. To change that, check Send an ‘At Risk’ notification.

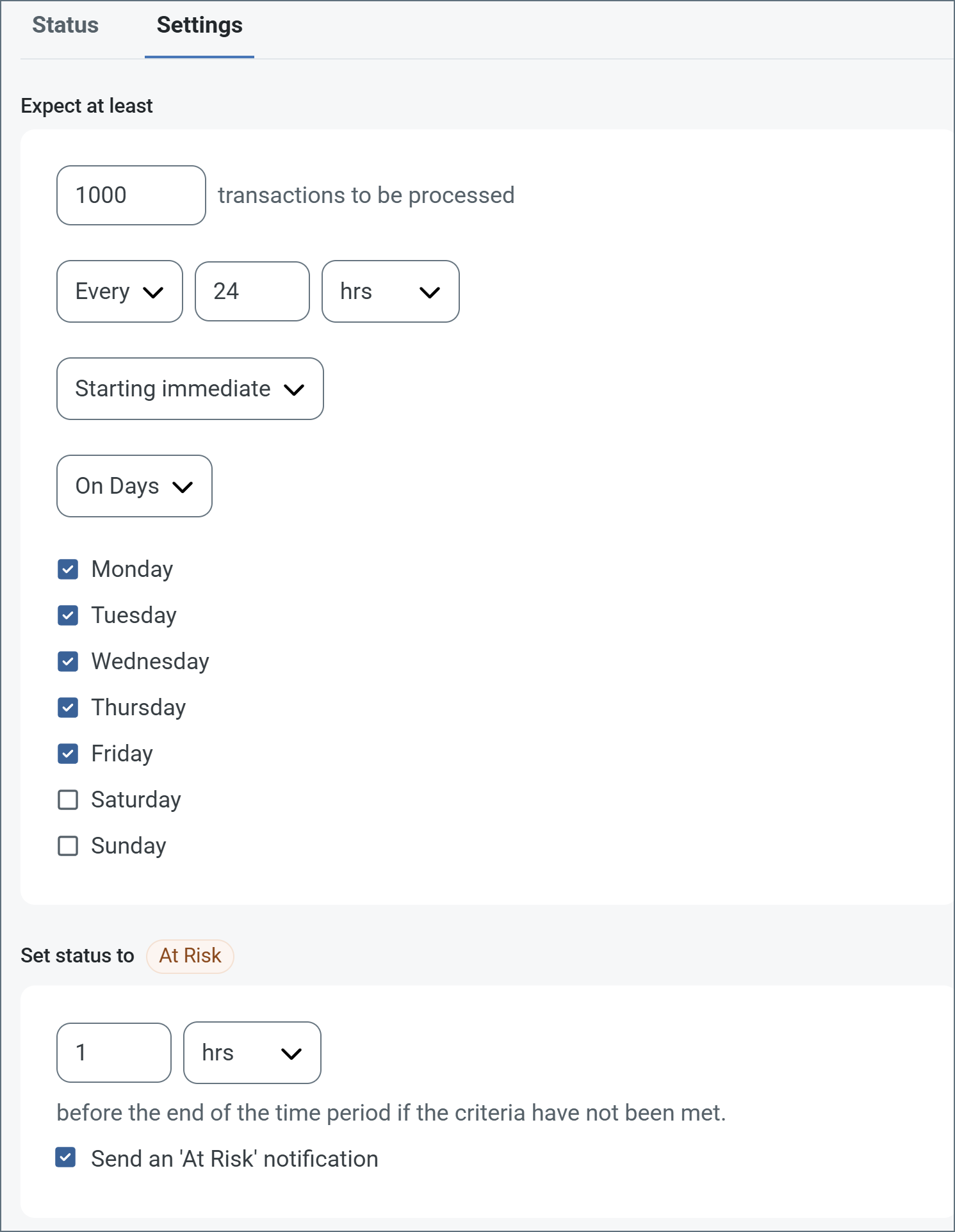

The following example shows an SLA configured for a connector that expects to receive 1000 files every day Monday-Friday. An at-risk notification is sent 1 hour before the end of the time period if the 1000 files have not been received.

Note: You can turn off SLA alerts if necessary. This can be useful during maintenance windows. Click Settings on the navbar, then navigate to Alerts > General Alerts. Click the tablet and pencil icon to edit, and uncheck the SLA Alerts setting.

Advanced Tab

Message

• Save to Sent Folder Check this to copy files processed by the connector to the Sent folder for the connector.
• Sent Folder Scheme Instructs the connector to group messages in the Sent folder according to the selected interval. For example, the Weekly option instructs the connector to create a new subfolder each week and store all messages for the week in that folder. The blank setting tells the connector to save all messages directly in the Sent folder. For connectors that process many messages, using subfolders helps keep messsages organized and improves performance.

Logging

• Log Level The verbosity of logs generated by the connector. When you request support, set this to Debug.
• Log Subfolder Scheme Instructs the connector to group files in the Logs folder according to the selected interval. The Weekly option (which is the default) instructs the connector to create a new subfolder each week and store all logs for the week in that folder. Leaving this setting blank tells the connector to save all logs directly in the Logs folder. For connectors that process many transactions, using subfolders helps keep logs organized and improves performance.
• Log Messages Check this to have the log entry for a processed file include a copy of the file itself. If you disable this, you might not be able to download a copy of the file from the Input or Output tabs.

Other Settings

• Processing Delay The amount of time (in seconds) by which the processing of files placed in the Input folder is delayed. This is a legacy setting. Best practice is to use a File connector to manage local file systems instead of this setting.

Miscellaneous

Miscellaneous settings are for specific use cases.

• Other Settings Enables you to configure hidden connector settings in a semicolon-separated list (for example, setting1=value1;setting2=value2). Normal connector use cases and functionality should not require the use of these settings.
