Creating a Service Principal App in Entra ID (Azure AD)

Note: Microsoft has rebranded Azure AD as Entra ID. In topics that require the user to interact with the Entra ID Admin site, we use the same names Microsoft does. However, there are still CData connection properties whose names or values reference "Azure AD".

Microsoft Dynamics 365 Business Central supports Service Principal-based authentication, which is role-based. This means that the Service Principal's permissions are determined by the roles assigned to it. The roles specify what resources the Service Principal can access and which operations it can perform.

If you want to use a Service Principal to authenticate to Microsoft Dynamics 365 Business Central, you must create a custom application in Microsoft Entra ID.

To enable Service Principal authentication:

• Confirm that you have permission to register applications and assign roles in your tenant.
• Register a new application and configure credentials and permissions in the Entra Admin Center.

Registering the Application

1. Go to https://portal.azure.com.
2. In the left-hand navigation pane, select Microsoft Entra ID > App registrations.

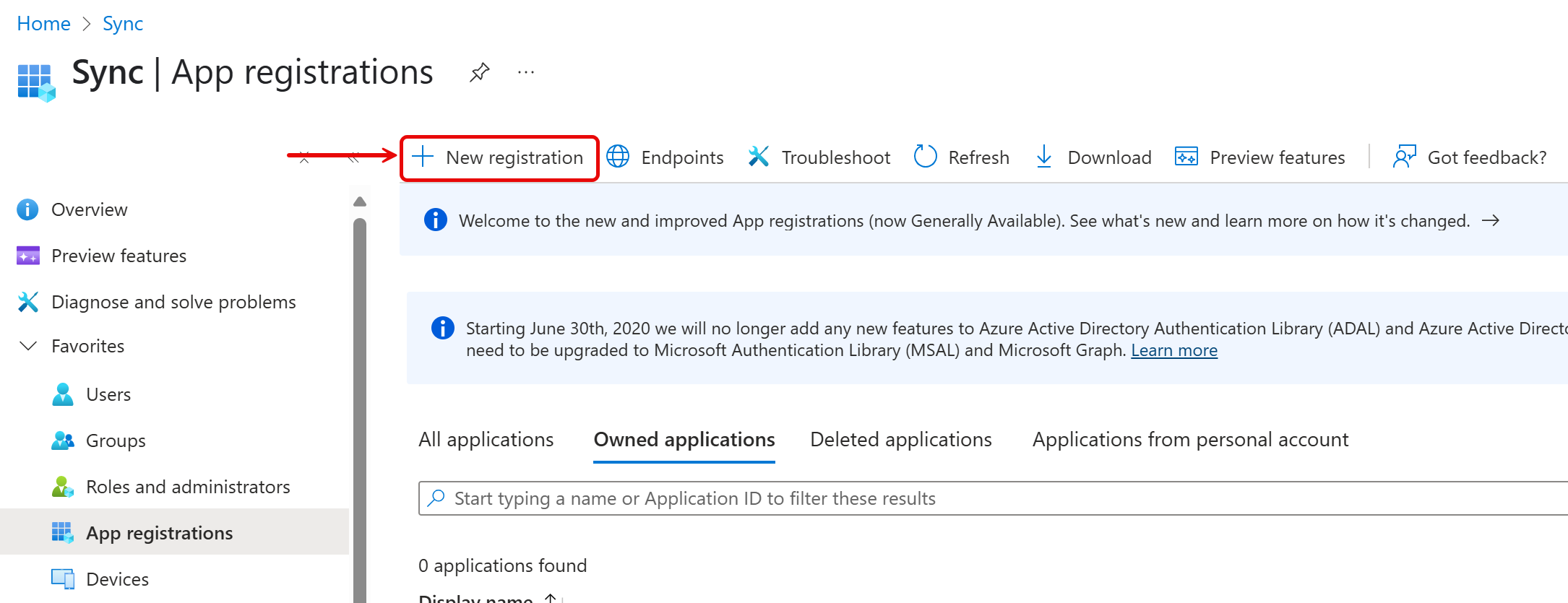

3. Click New registration.

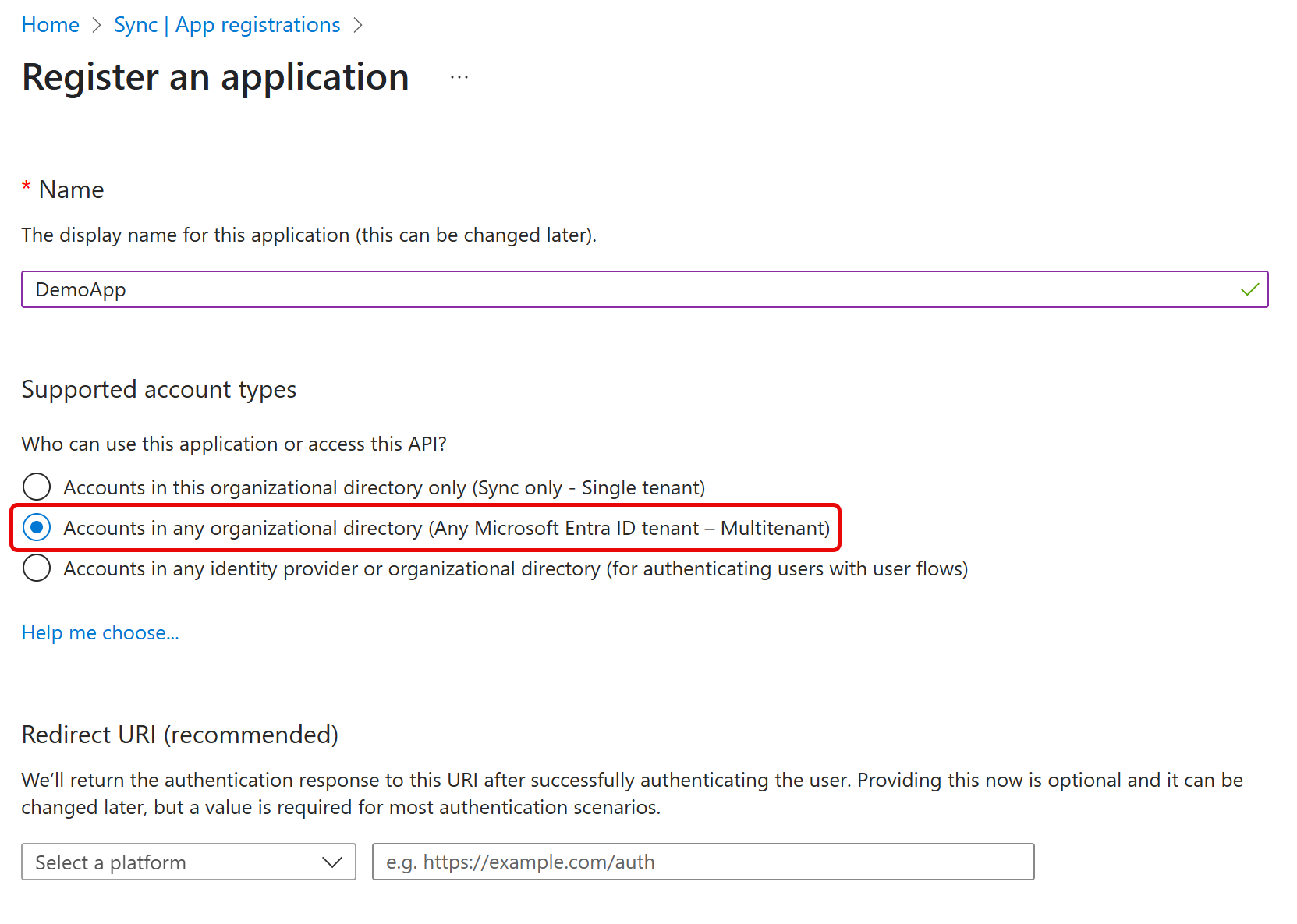

4. Enter a name for the application.
5. Select the desired tenant setup. Since this custom application is for Service Principal use, choose Any Microsoft Entra ID tenant – Multitenant.

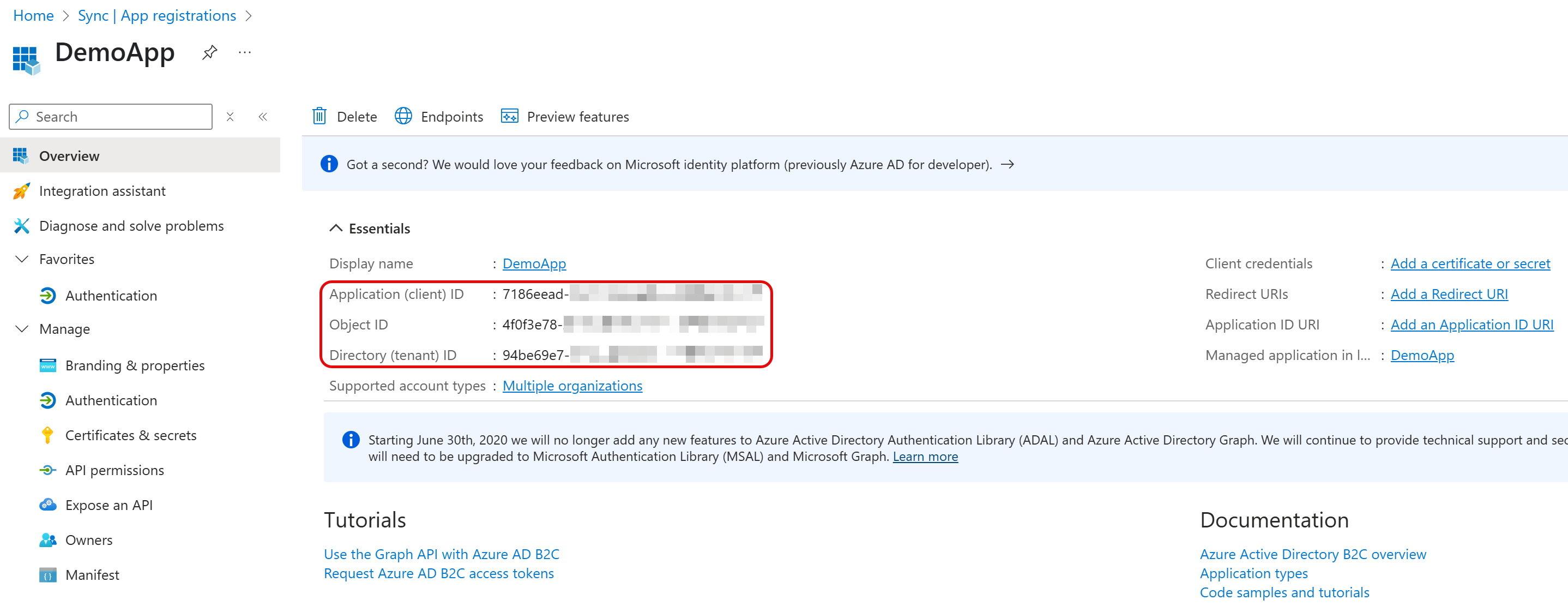

6. Click Register. The application management screen opens. Note the value in Application (client) ID as the OAuthClientId and the Directory (tenant) ID as the AzureTenant






7. Navigate to Certificates & Secrets and define the application authentication type. Two types of authentication are available: certificate (recommended) or client secret
   • For creating a new client secret: In Certificates & Secrets, select New Client Secret for the application and specify its duration. After the client secret is saved, Microsoft Dynamics 365 Business Central displays the key value. This value is displayed only once, so be sure to record it for future use. Use this value for the OAuthClientSecret

8. Navigate to Authentication and select the Access tokens option.
9. Save your changes.
10. If you specified permissions that require admin consent, you can grant them from the current tenant on the API Permissions page.

Granting Admin Consent

Some custom applications require administrative permissions to operate within a Microsoft Entra ID tenant. This is especially true for applications that use Application permissions, which allow the app to run without a signed-in user. Admin consent can be granted when creating a new application, by adding relevant permissions marked as "Admin Consent Required". Admin consent is also required to use Client Credentials in the authentication flow.

These permissions must be granted by an admin. To grant admin consent:

1. Log in to https://portal.azure.com with an administrator account.
2. Navigate to Microsoft Entra ID > App registrations and select your registered application.
3. Navigate to API permissions.
4. Review the permissions listed under Application permissions. Ensure the necessary API scopes are included for your use case.
5. Click Grant admin consent to approve the requested permissions.

This gives your application permissions on the tenant under which it was created.
